In SAP, every financial or material movement is backed by an automatic accounting entry. These entries are controlled through transaction keys (also called event keys). A transaction key serves as the bridge between a business transaction (like goods receipt, invoice, or vendor payment) and the General Ledger (G/L) accounts. Without them, SAP would not know which accounts to debit or credit during a transaction.

Transaction keys are assigned during automatic account determination, which allows SAP to post accounting entries without manual intervention. This ensures accuracy, compliance, and speed in financial reporting.

Document type, Posting Keys & Transaction keys:

Purpose of Transaction Keys

The main purpose of transaction keys is to:

Automate G/L postings in Material Management (MM) and Financial Accounting (FI).
Differentiate between business transactions like goods receipt, invoice, consumption, stock transfer, vendor payment, etc.
Maintain a clear audit trail by linking material movements to financial postings.
Ensure integration between MM and FI modules, enabling real-time stock valuation and financial reporting.

Importance of Transaction Keys

Transaction keys are crucial because:

Consistency: They standardize postings across the organization.
Transparency: Users can easily track which accounts were affected by which movement.
Automation: Reduce manual accounting entries and errors.
Compliance: Support statutory reporting and auditing.
Flexibility: Different transaction keys can be configured for different valuation areas, plants, or account assignments.

Common T-Codes for Account Determination

To configure and analyze transaction keys, the following transaction codes are widely used:

OBYC – Automatic account determination for MM-FI integration.
OB40 – FI posting keys and tax determination.
OMWB – Assign valuation class to material.
MIGO – Goods Movement (GR, GI, transfer postings).
MIRO – Invoice verification.
F-53 / F110 – Vendor payments.

Configuration Steps

Configuration of transaction keys in SAP generally follows these steps:

Define Valuation Classes: Assign valuation classes to materials to differentiate postings (e.g., raw materials, finished goods).
Assign Valuation Grouping Code to Valuation Area: Simplifies configuration across plants.
Automatic Account Assignment (OBYC): Link transaction keys with G/L accounts.
1. Select Transaction Key (e.g., BSX, WRX, GBB).
2. Enter the Chart of Accounts and Valuation Grouping Code.
3. Assign appropriate G/L accounts (Inventory, GR/IR, COGS, etc.).
Test via Business Transactions: Perform MIGO, MIRO, etc., and check accounting documents.

Transaction Keys for MM & FI:

Explanation of Transaction Keys

1. BSX – Inventory Posting Debit

Used for inventory postings when stock increases.

Debit: Inventory account (Raw Materials, Finished Goods).
Credit: GR/IR clearing or offsetting account.
Example: Goods receipt against a purchase order.

2. WRX – GR/IR Clearing Account

Manages temporary differences between goods receipt and invoice receipt.

Debit: GR/IR when invoice is posted.
Credit: GR/IR when goods are received.
Example: PO received at $10/unit, invoice received at $11/unit → GR/IR adjusts $1 difference.

3. GBB – Goods Issue / Scrapping / Delivery

Used when stock leaves inventory.

Debit: COGS or Scrap account.
Credit: Inventory account.
Example: Issue of raw material to production or scrapping damaged goods.

4. BSV – Stock Change Account

Used for stock revaluation when actual cost differs from standard price.
Example: Standard price $10, actual $9 → $1 difference adjusted.

5. FRL – External Activity

Captures subcontracting or external service costs.

Debit: Service expense (subcontracting cost).
Credit: Inventory or vendor account.
Example: The Subcontractor produces material at an agreed cost.

6. PRD – Price Differences

Posts differences between standard price and actual purchase price.

Debit/Credit: Price difference account.
Example: PO at $10/unit, standard $11/unit → $1 posted to PRD.

7. KON – Consignment Liability

Used for materials held in consignment by vendors.

Debit/Credit to liability account upon consumption or settlement.

8. KBS – Account Assigned Purchase Order

Used when materials are directly consumed (not stock).

Debit: Expense/asset account.
Credit: GR/IR or vendor account.
Example: Office supplies purchased to cost center.

9. ZBO – Goods Receipt Without PO

Used for unplanned goods receipt.

Debit: Inventory account.
Credit: Clearing account.

10. VBR – Internal Goods Issue

For internal stock consumption or transfers.

Debit: Consumption account.
Credit: Inventory account.

11. UPF – Unplanned Delivery Costs

Used in stock transfer with price update.

Adjusts inventory value during transfer with new price.

12. OFF – Offsetting Entry with Deduction

Used to clear open items or reverse incorrect postings.

Common in adjustment and correction entries.

13. WIT – Extended Withholding Tax

Used for tax deductions at the source.

Supports different tax types, tax codes, and reporting.
Example: Vendor invoice with TDS deducted at 10%.

14. VBO – Consumption from Stock Provided to Vendor

For consumption of stock given to a vendor as part of a contract.

Debit: Consumption account.
Credit: Inventory account.

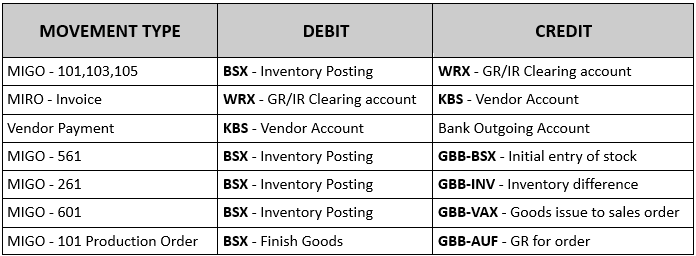

Transaction event keys associated with Movement Types

Conclusion

Transaction keys form the backbone of automatic account determination in SAP. They ensure seamless integration between MM and FI, automate postings, and keep financial data accurate. For every goods movement or vendor transaction, SAP uses a transaction key to decide which G/L accounts should be updated.

Understanding and configuring these transaction keys not only improves system efficiency but also provides transparency in financial reporting. Whether it’s BSX for inventory or WIT for withholding tax, each transaction key has a critical role in maintaining the accuracy, compliance, and reliability of an SAP system.
