Introduction

In SAP Sales and Distribution (SD), the enterprise structure represents the way a company’s business operations are organized and mapped in the system. It is the backbone of the SD module because all transactions—sales orders, deliveries, billing, and reporting—are tied to this structure. Without a well-defined enterprise structure, it would be impossible to manage sales, distribution, and reporting processes effectively.

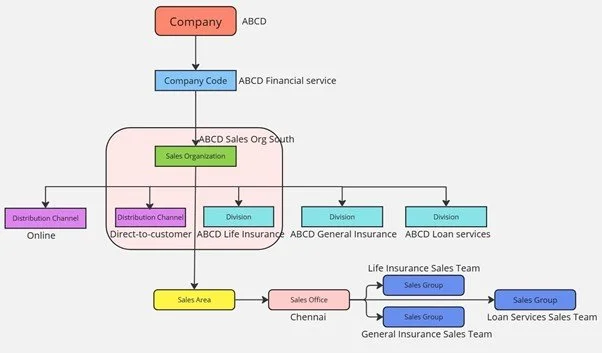

The enterprise structure defines organizational units such as company codes, sales organizations, distribution channels, divisions, plants, storage locations, and shipping points. Once these organizational units are created, they must be assigned to one another so that transactions flow smoothly and data is integrated across modules like FI (Financial Accounting), MM (Materials Management), and PP (Production Planning).

This blog explains the purpose, importance, T-codes, configuration steps, and real-time scenarios for enterprise structure and assignment in SAP SD.

Purpose

The purpose of the enterprise structure in SAP SD is to:

Map real-world business operations into the SAP system so that day-to-day transactions are aligned with organizational processes.
Ensure financial accuracy, since every sales transaction ultimately affects accounting (FI).
Enable sales reporting and analysis, as data is categorized by organizational units like sales organization or distribution channel.
Support flexible business models, such as multiple plants serving different sales organizations or a single sales organization catering to multiple divisions.

Importance of Enterprise Structure

Understanding and setting up the enterprise structure correctly is critical for both consultants and business users.

Data Consistency: Ensures sales documents, deliveries, and invoices are linked properly.
Scalability: Supports business expansion (e.g., new sales organizations or plants can be added easily).
Integration: Each element connects SD with MM, FI, PP, and WM (Warehouse Management), enabling end-to-end process visibility.
Legal Compliance: Company codes ensure that financial transactions comply with statutory requirements (balance sheets, P&L statements).

Without proper enterprise structure, even basic sales order processing can fail due to missing organizational assignments.

Common Issues

While configuring enterprise structure in SAP SD, consultants and end-users often face challenges. Some of the most common issues are:

Sales Organization Not Assigned to Company Code

Issue: Sales orders cannot be created because the sales organization is not linked to the correct company code.
Solution: Check T-code OVX3 and reassign the sales organization properly.

Distribution Channel Missing Assignment

Issue: The system throws an error when processing a sales order if the distribution channel is not assigned to the sales organization.
Solution: Use T-code OVXK to assign distribution channels.

Division Not Linked to Sales Organization

Issue: System cannot determine sales area if division is missing.
Solution: Check OVXA to ensure proper division assignment.

Plant Not Assigned to Sales Org/Distribution Channel

Issue: During sales order creation, the system cannot determine the delivering plant.
Solution: Use OVX6 to assign the plant correctly.

Shipping Point Determination Failure

Issue: Delivery cannot be created because the system cannot determine a valid shipping point.
Solution: Check OVL2 and shipping point determination configuration.

Storage Location Not Assigned

Issue: Picking process fails because storage location is missing.
Solution: Verify storage location settings in OX09 and assignment rules.

Incorrect Sales Area Setup

Issue: Inconsistencies in sales order creation if the sales area (Sales Org + Dist. Channel + Division) is not properly defined.
Solution: Use OVXG to validate and correct sales area definitions.

Multiple Assignments Leading to Conflicts

Issue: Overlapping configurations (e.g., plant assigned to multiple conflicting sales areas) cause confusion.
Solution: Review assignments carefully to avoid redundancy.

By proactively checking these issues during configuration, consultants can save significant time and prevent order processing errors in real-time business scenarios.

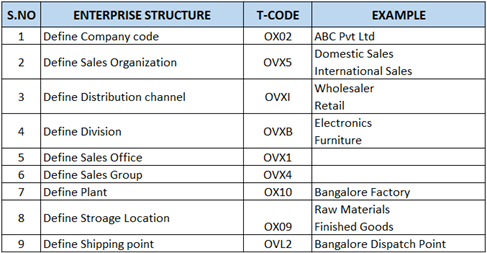

Key T-Codes for Enterprise Structure

Below are some important T-codes used in SAP SD enterprise structure setup:

Company Code: OX02
Sales Organization: OVX5
Distribution Channel: OVXI
Division: OVXB
Sales Office: OVX1
Sales Group: OVX4
Plant: OX10
Storage Location: OX09
Shipping Point: OVL2

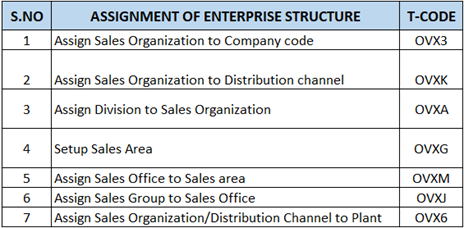

Assignment T-Codes:

Assign Sales Org to Company Code: OVX3
Assign Distribution Channel to Sales Org: OVXK
Assign Division to Sales Org: OVXA
Set up Sales Area: OVXG
Assign Sales Office to Sales Area: OVXM
Assign Sales Group to Sales Office: OVXJ
Assign Sales Org/Distribution Channel to Plant: OVX6

These T-codes are used by consultants during SAP SD configuration in SPRO.

***Assignment of Enterprise Structure***

Step-by-Step Configuration

Step 1: Define Company Code (OX02)

A company code is a legal entity for which financial statements like Balance Sheet and P&Ls are created.
Example: Company code 1000 for “ABC India Ltd.”

Step 2: Define Sales Organization (OVX5)

Responsible for managing sales and distribution activities.
Example: Sales Org 1000 for “Domestic Sales” and 2000 for “International Sales.”

Step 3: Define Distribution Channel (OVXI)

Represents the path through which goods reach customers.
Example: 10 – Wholesale, 20 – Retail.

Step 4: Define Division (OVXB)

Represents product lines.
Example: 01 – Electronics, 02 – Furniture.

Step 5: Define Plant (OX10)

A physical location for manufacturing or storing goods.
Example: Plant 1000 – Bangalore Factory.

Step 6: Define Storage Location (OX09)

Subdivision within a plant where inventory is physically stored.
Example: 0001 – Raw Materials, 0002 – Finished Goods.

Step 7: Define Shipping Point (OVL2)

The place from which deliveries are dispatched.
Example: 1000 – Bangalore Dispatch Point.

Step 8: Assign Organizational Units

Assign Sales Org to Company Code (OVX3).
Assign Distribution Channel to Sales Org (OVXK).
Assign Division to Sales Org (OVXA).
Set up Sales Area (OVXG) by combining Sales Org + Distribution Channel + Division.
Assign Sales Office to Sales Area (OVXM).
Assign Sales Group to Sales Office (OVXJ).
Assign Sales Org/Distribution Channel to Plant (OVX6) to link logistics with sales.

Once these assignments are complete, the enterprise structure is ready for transaction processing.

Real-Time Example

Let’s consider an example of a consumer goods company, ABC Foods Pvt Ltd.

Company Code: 1000 – ABC Foods India Pvt Ltd.
Sales Organizations:

1100 – Domestic Sales
1200 – Export Sales

Distribution Channels:

10 – Retail
20 – Wholesale

Divisions:

01 – Beverages
02 – Snacks

Plants:

1000 – Bangalore Manufacturing Plant
2000 – Mumbai Distribution Plant

Storage Locations:

0001 – Finished Goods Store
0002 – Raw Materials Store

Shipping Points:

1000 – Bangalore Dispatch Point
2000 – Mumbai Dispatch Point

Assignments:

Sales Org 1100 assigned to Company Code 1000.
Distribution Channel 10 (Retail) and 20 (Wholesale) assigned to Sales Org 1100.
Division 01 (Beverages) and 02 (Snacks) assigned to Sales Org 1100.

Plant 1000 (Bangalore) assigned to Sales Org 1100 and Distribution Channel 10.

Scenario

When a customer places an order for snacks in the wholesale channel, the system checks the Sales Area (Sales Org 1100 + Dist. Channel 20 + Division 02). The plant is determined, delivery is scheduled from the correct shipping point, and billing is linked to the right company code for financial reporting.

This real-time mapping shows how enterprise structure controls the flow of transactions from sales order creation to delivery and billing.

Conclusion

The enterprise structure and assignment in SAP SD are the foundation for successful business transactions. They ensure:

Proper integration between SD, MM, FI, and PP.
Accurate financial reporting by linking sales to company codes.
Seamless logistics execution through plants, storage locations, and shipping points.
Flexibility for different sales channels and product divisions.

By setting up organizational units and their assignments correctly, companies can ensure a smooth flow of sales orders, deliveries, invoices, and payments. For SAP consultants and learners, mastering enterprise structure is one of the first and most important steps in SD configuration.

Enterprise Structure and Assignment
